Introduction

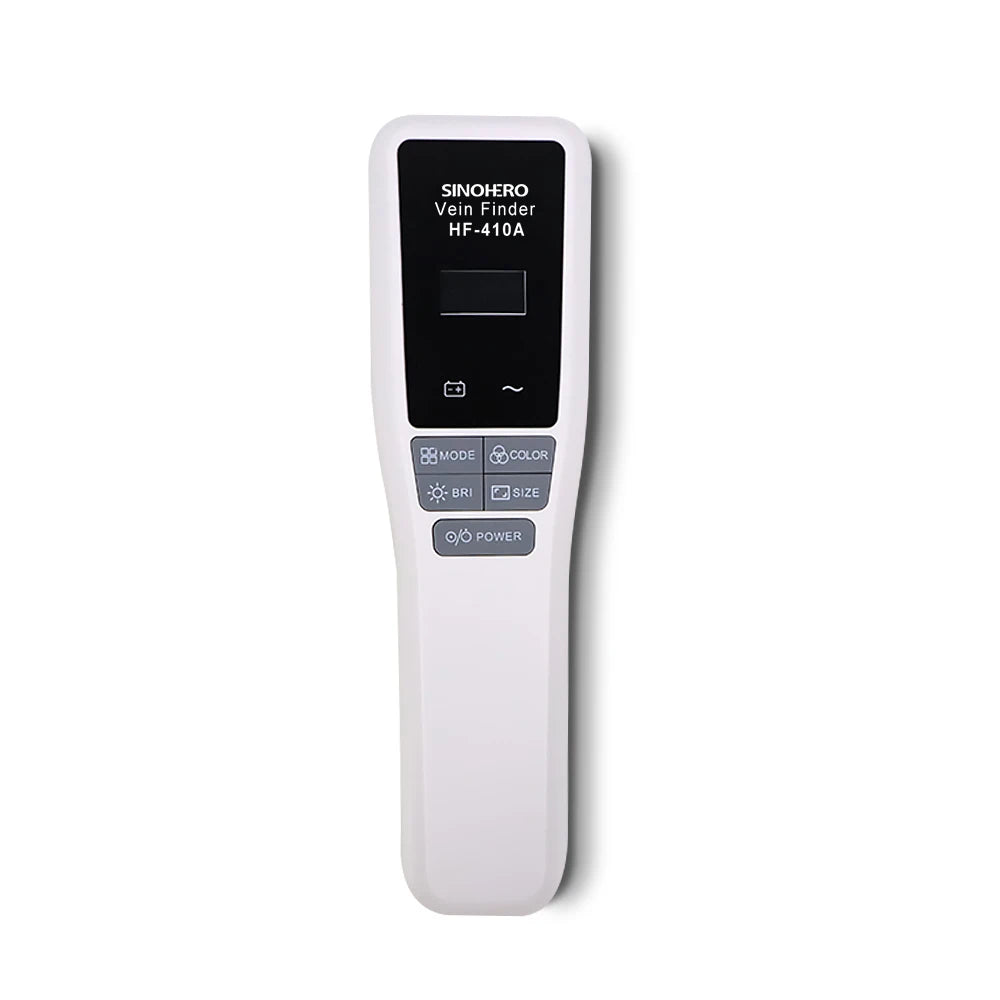

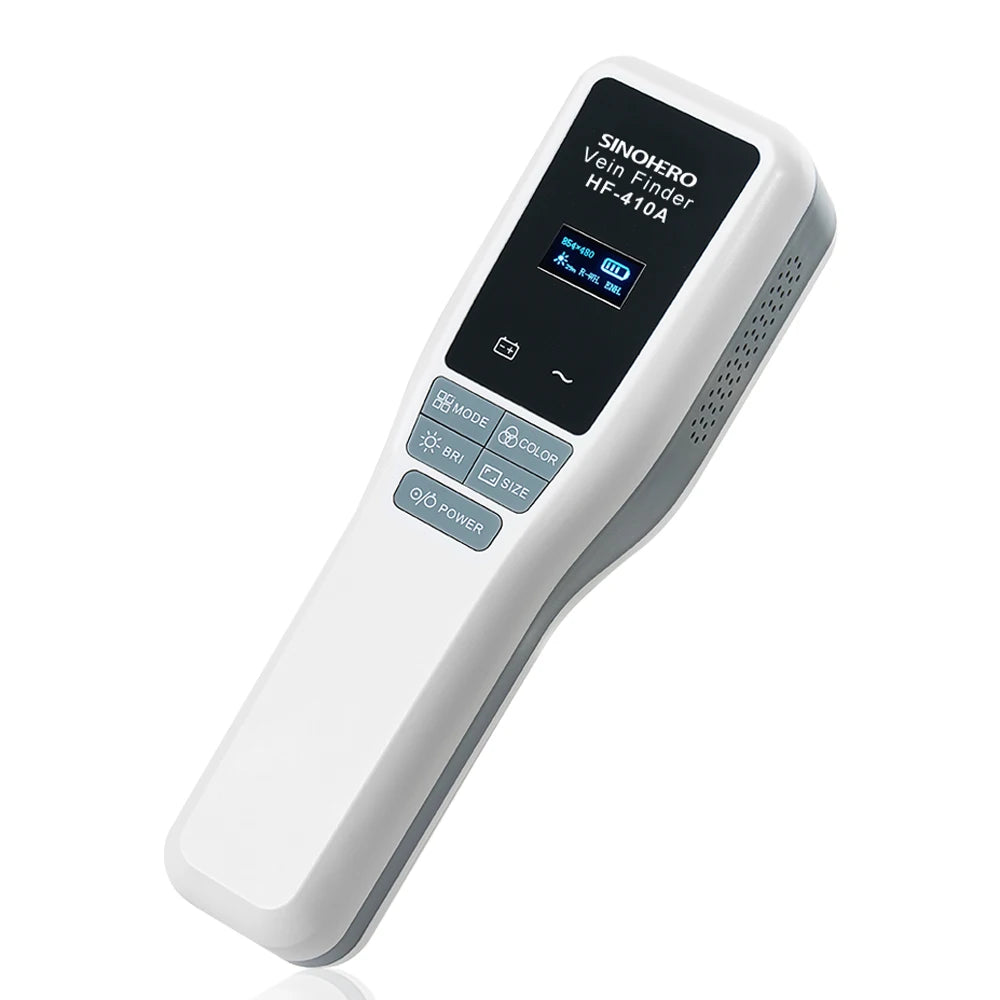

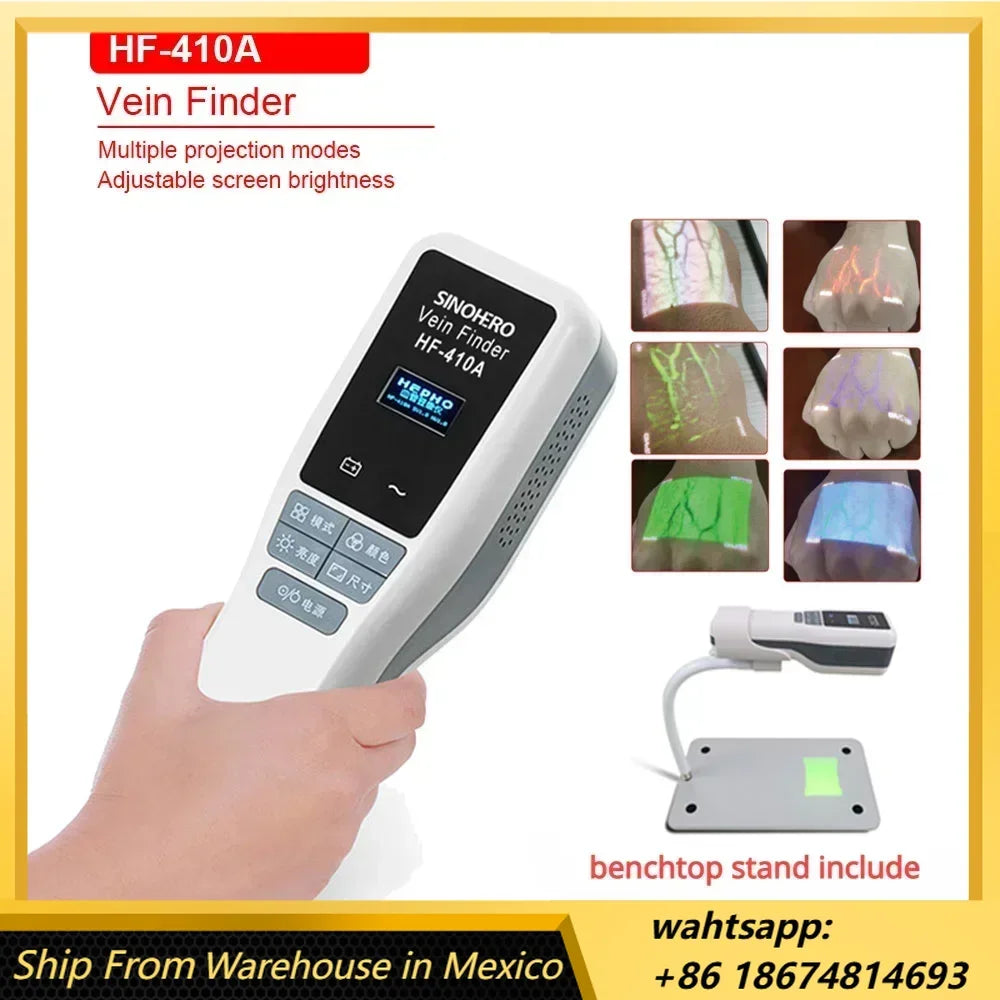

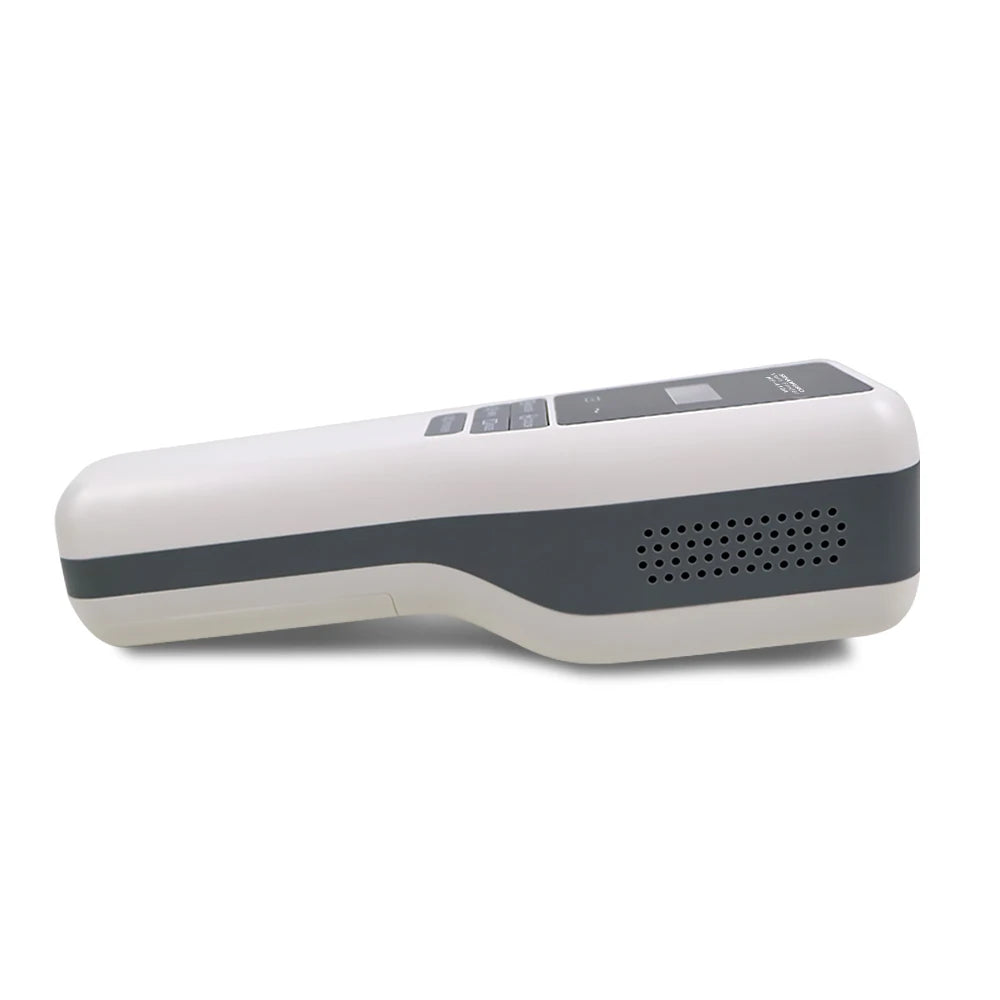

HF-410A is a Near-Infrared Handheld Vein Finder Locator lazer Device, Vein Viewer Medical Treatment Machine.

A vein finder is a medical tool that assists nurses and healthcare workers in finding the location of veins. They use advanced infrared technology with LED lights.Light is absorbed differently by blood than by surrounding tissues, and it's this principle that allows practitioners to locate veins more easily.

Appliction:It widely use For Hospital Clinic Nurses injection Illuminator Blood Vein finder Locator,assists nurses and healthcare workers to quickly find a patient's vein without undue hassle or trauma to the patient, This can be particularly helpful for those patients with difficult venous access.

Feature:

● This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments.

● Advanced vasculature algorithm

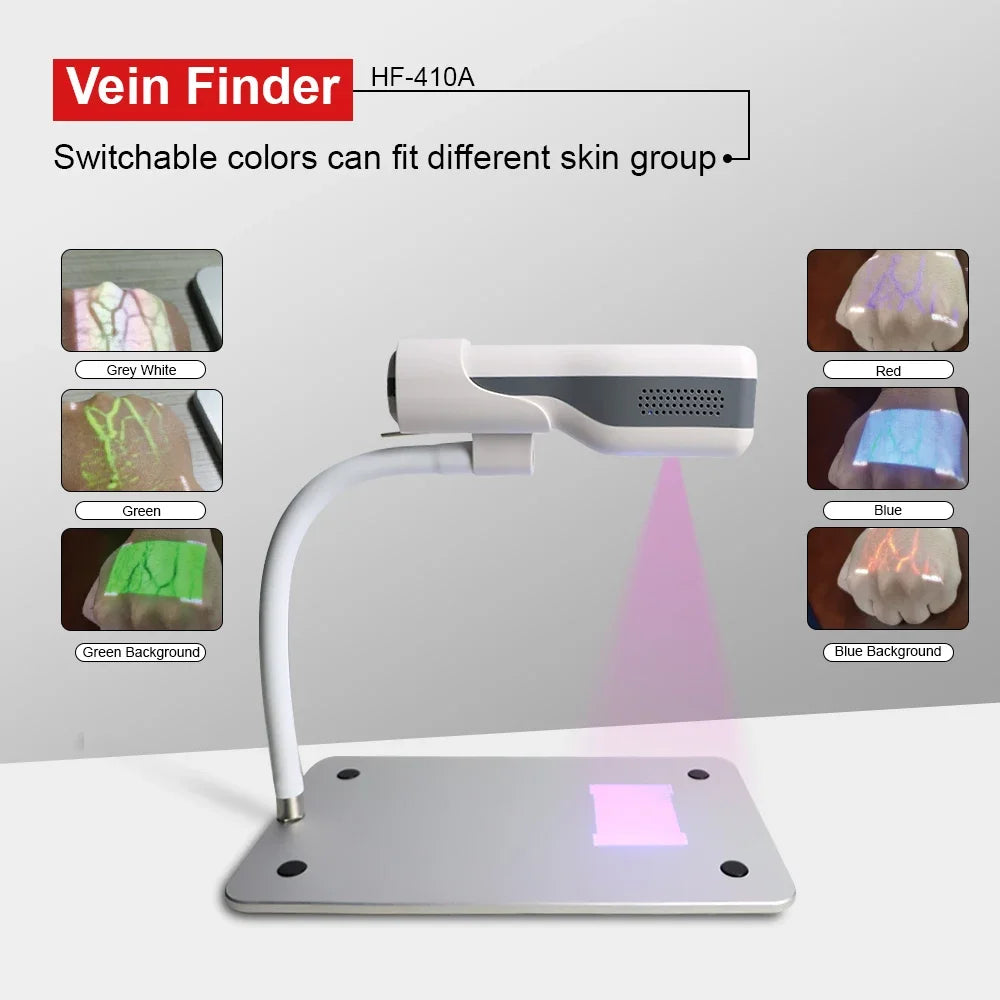

● Switchable colors can fit different skin group

● 4 Sizes Available: Large,Medium,Small,Very Small Suitable for adults, children ,infant and newborns.

● Adjustable Brightness: Adjust the projection image to the most comfortable brightness.

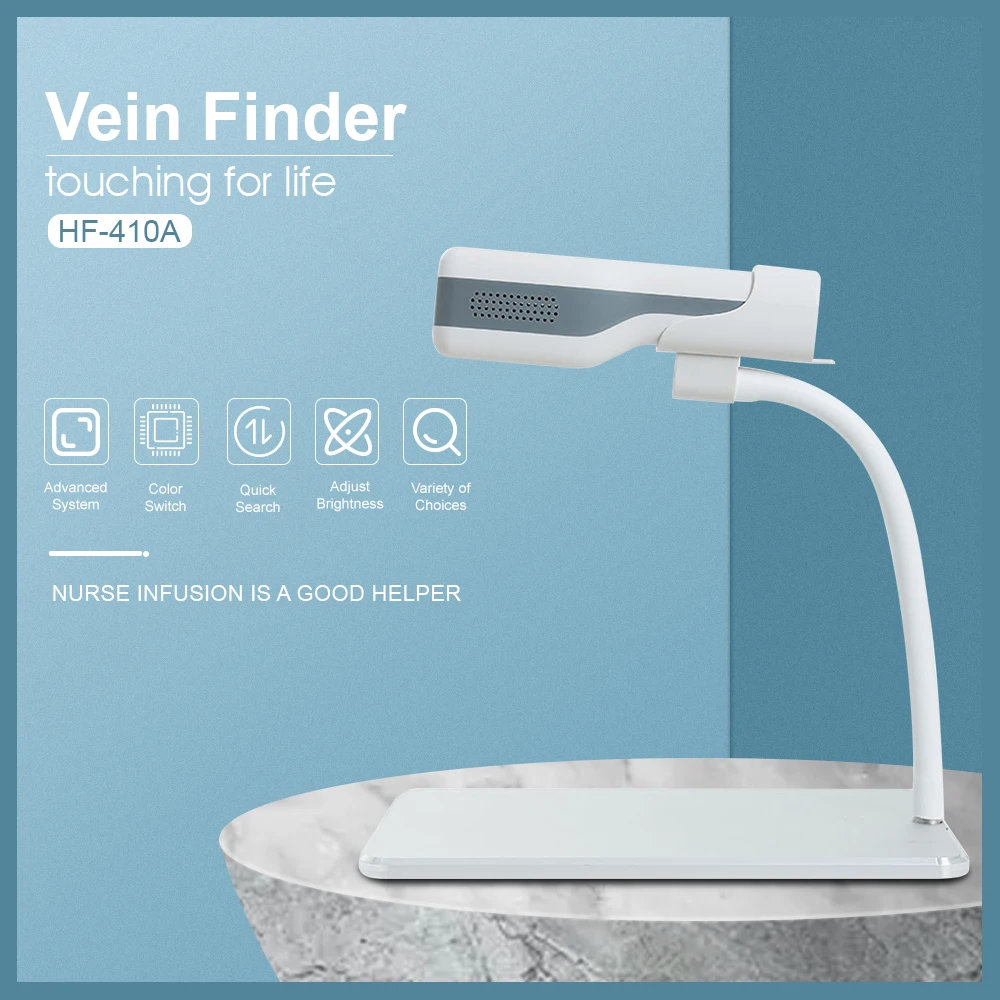

● Handheld, benchtop, mobile stand available

● Help clinicians find peripheral veins, bifurcations and valves in real-time

● Increase first stick success and patient satisfaction by up to 100%

* Normal Mode: Reduce arm hair interference and make blood vessels clearer.

* Enhancement Mode: Enhance the clarity of blood vessel detection.

* depth Mode: enter into low power mode when the user needs short intervals and can be waked up quickly.

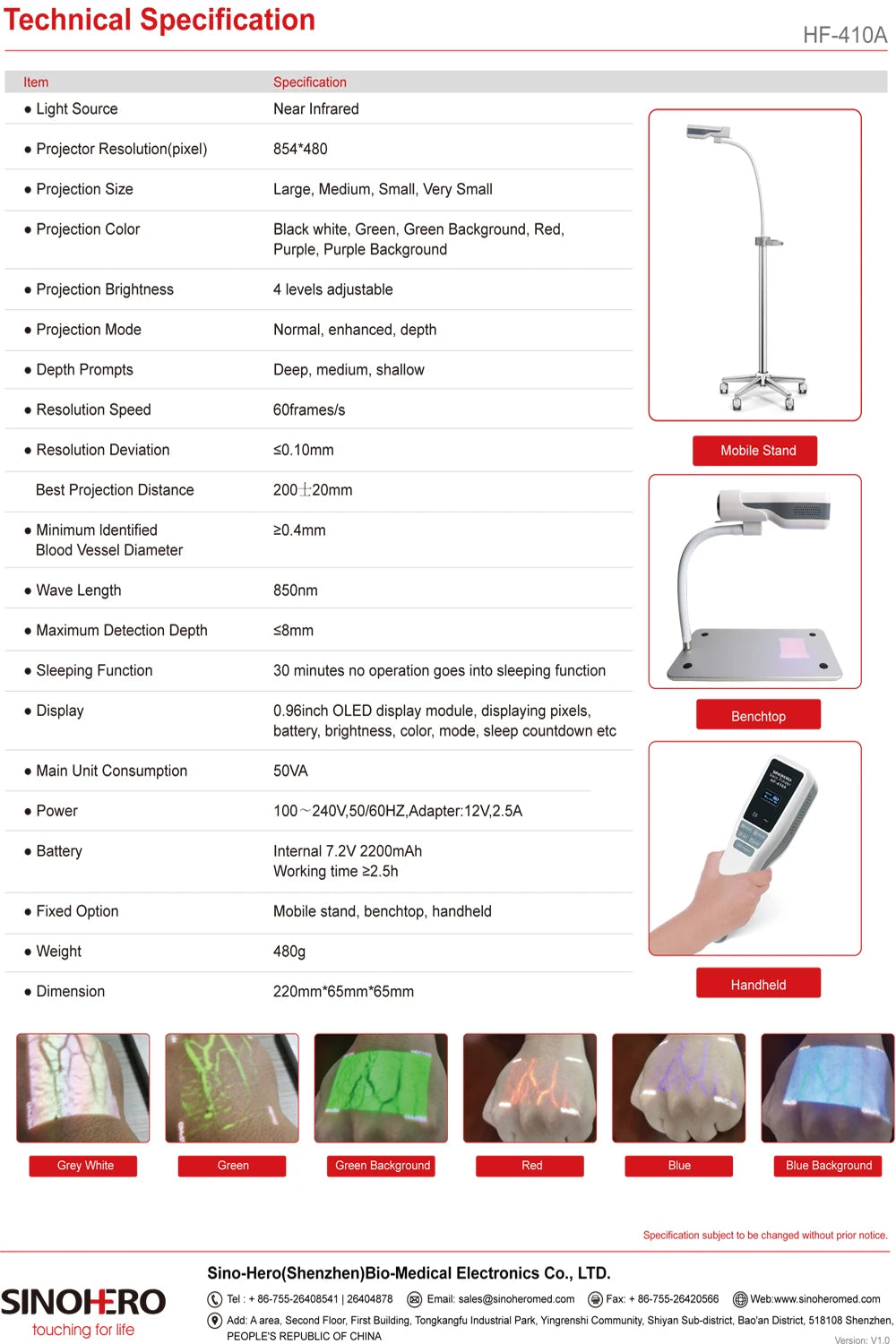

Technical Specification:

● Light Source:Near Infrared

● Projector Resolution(pixel):854*480

● Projection Size:Large, Medium, Small, Very Small Suitable for adults, children ,infant and newborns.

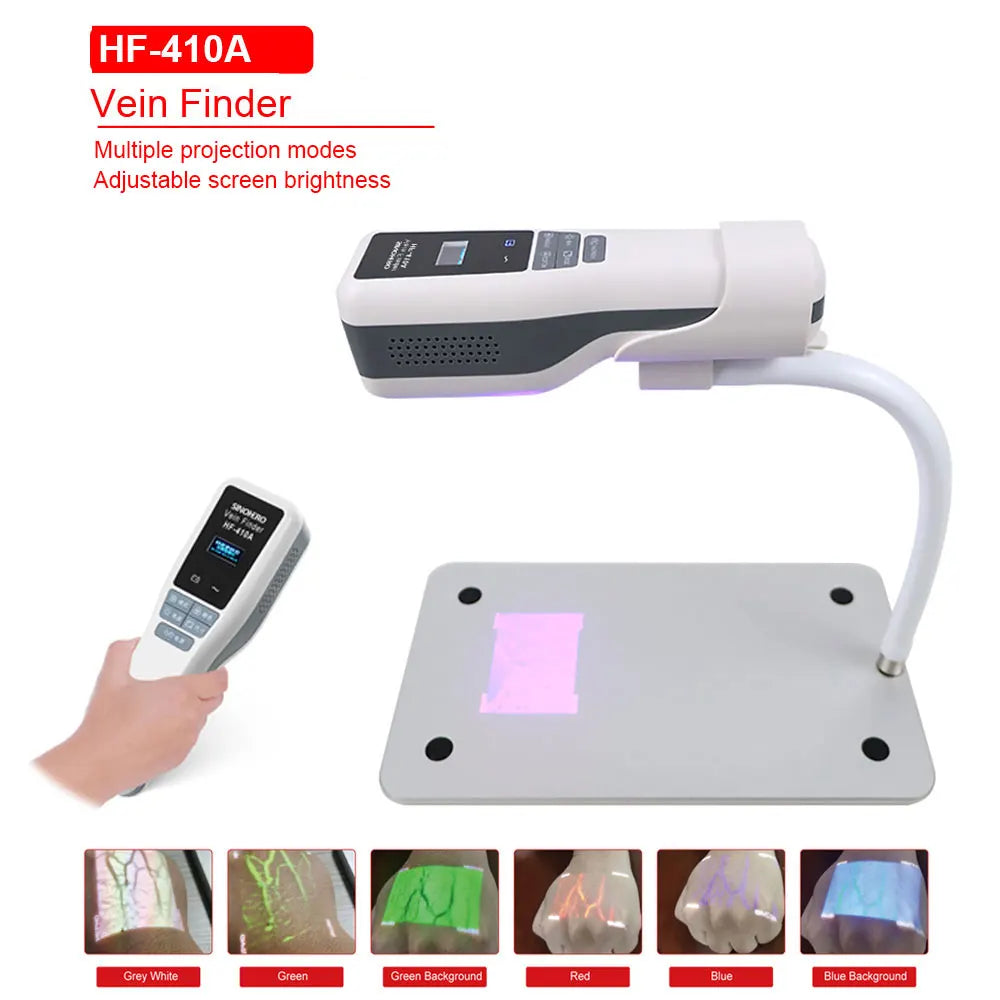

● Projection Color:Black white, Green, Green Background, Red,

Purple, Purple Background

● Projection Brightness:4 levels adjustable the projection image to the most comfortable brightness.

● Projection Mode:Normal, enhanced, depth

● Depth Prompts:Deep, medium, shallow

● Resolution Speed:60frames/s

● Resolution Deviation:≤0.10mm

Best Projection Distance:200士20mm

● Minimum ldentified Blood Vessel Diameter:≥0.4mm

● Wave Length:850nm

● Maximum Detection Depth:≤8mm

● Sleeping Function:30 minutes no operation goes into sleeping function

● Display:0.96inch OLED display module, displaying pixels,

battery, brightness, color, mode, sleep countdown etc

● Main Unit Consumption:50VA

● Power:100～240V,50/60HZ,Adapter:12V,2.5A

● Battery:Internal 7.2V 2200mAh Working time ≥2.5h

● Fixed Option:Mobile stand, benchtop, handheld

Physical characteristic:

● Dimension:220mm*65mm*65mm

● Weight:480g

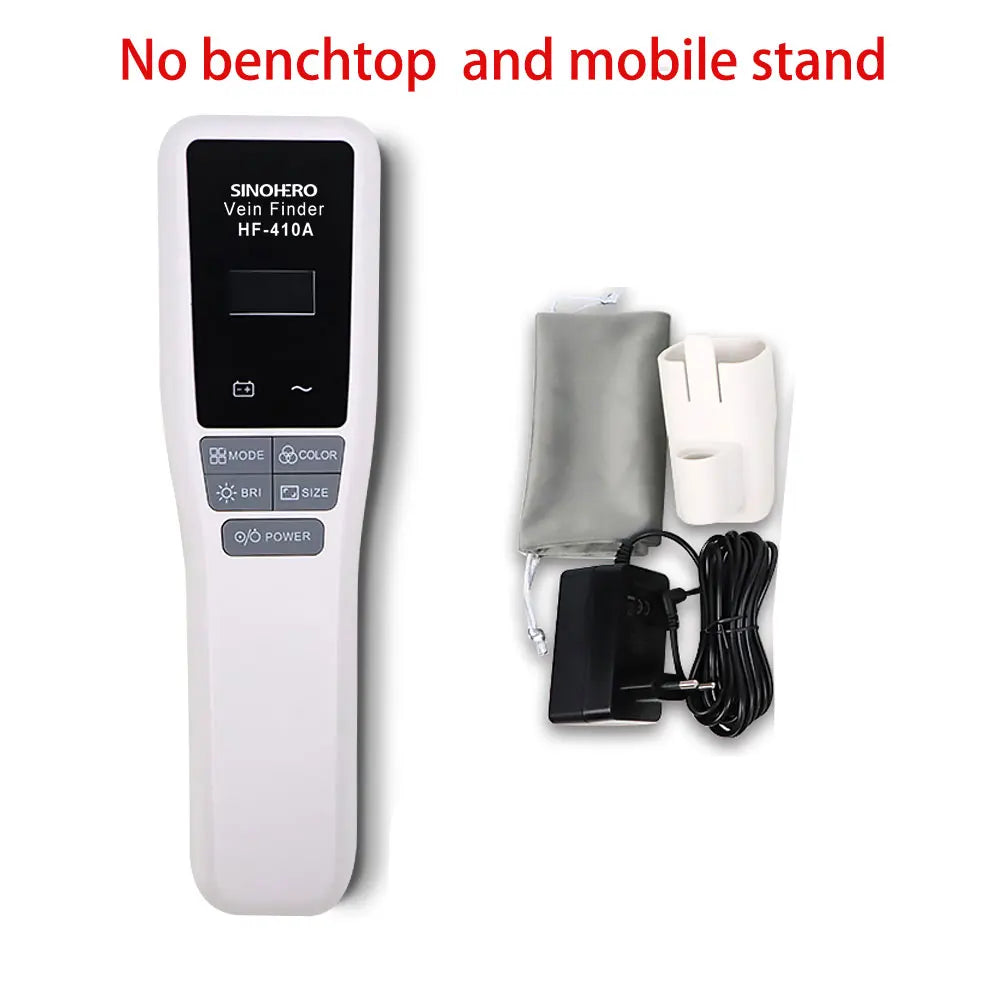

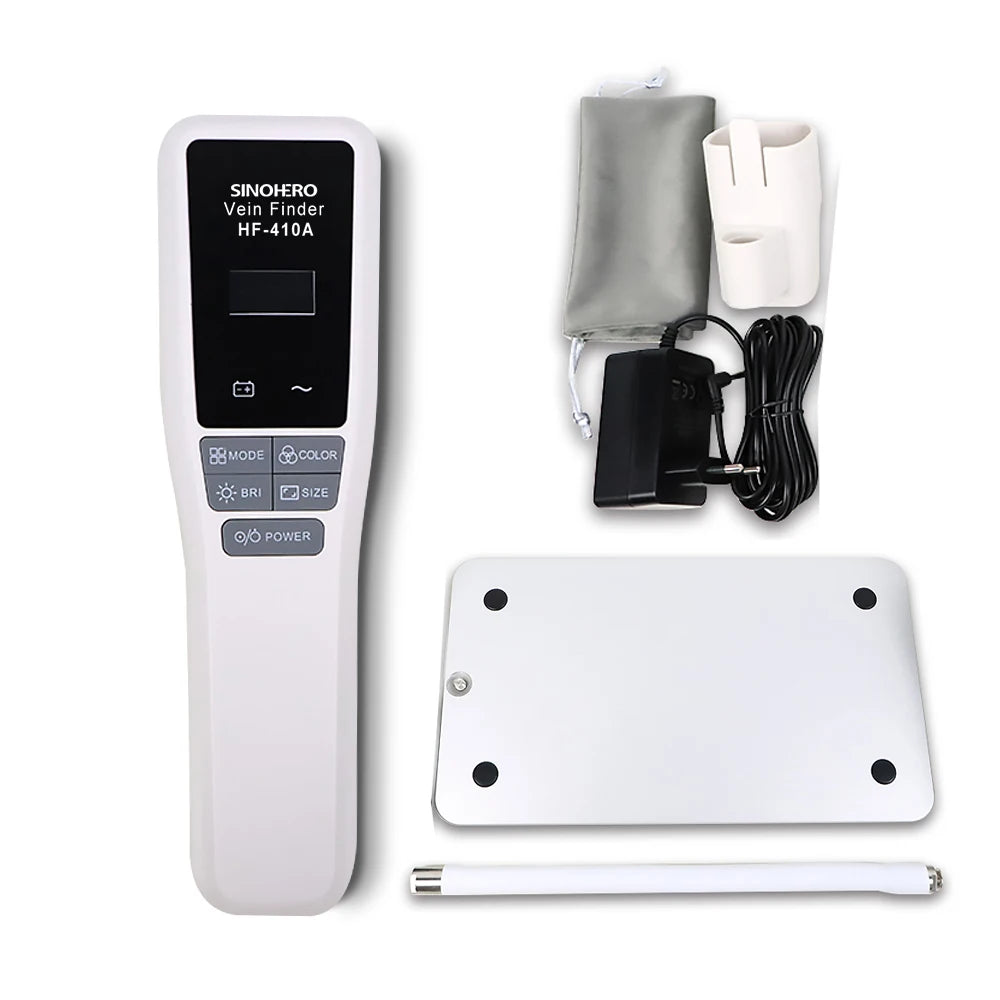

sku Desktop Vein Finder Package included:

1X HF-410A Vein Finder

1X Power Charger

1X Carrying Case

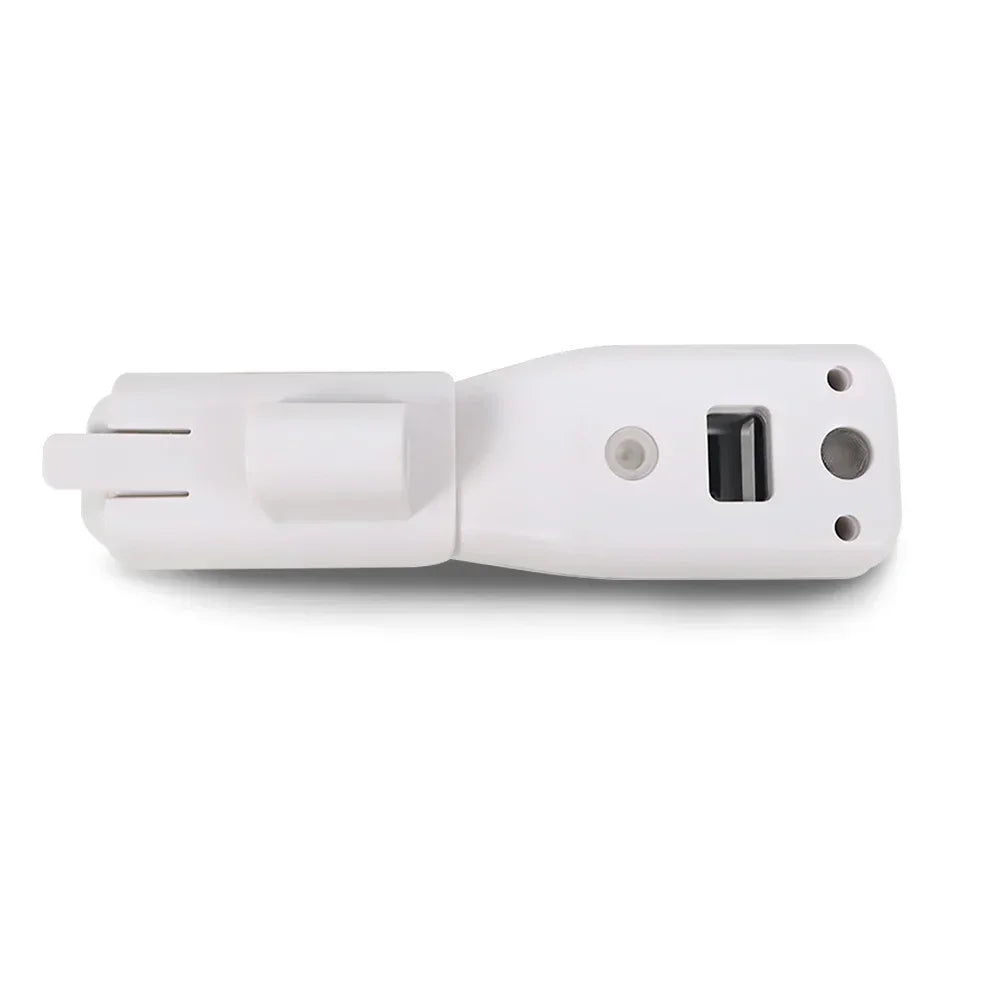

1X Bracket

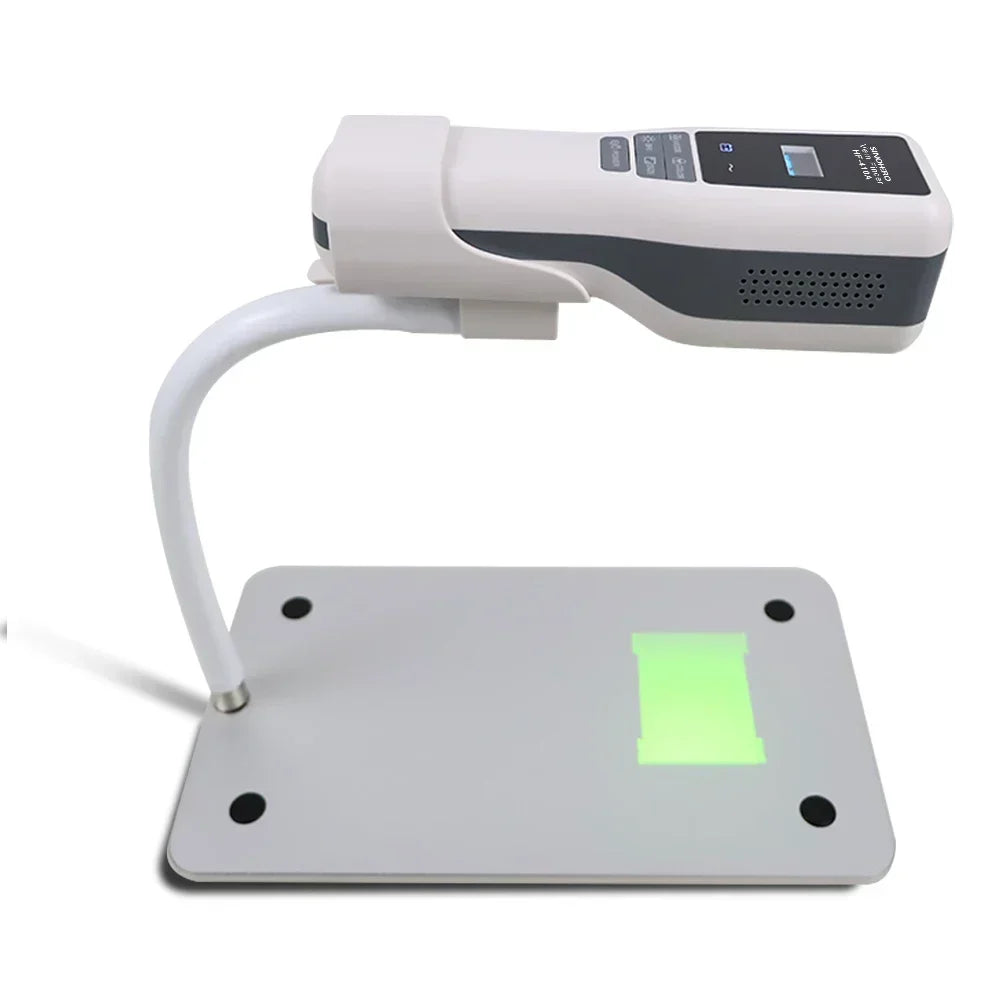

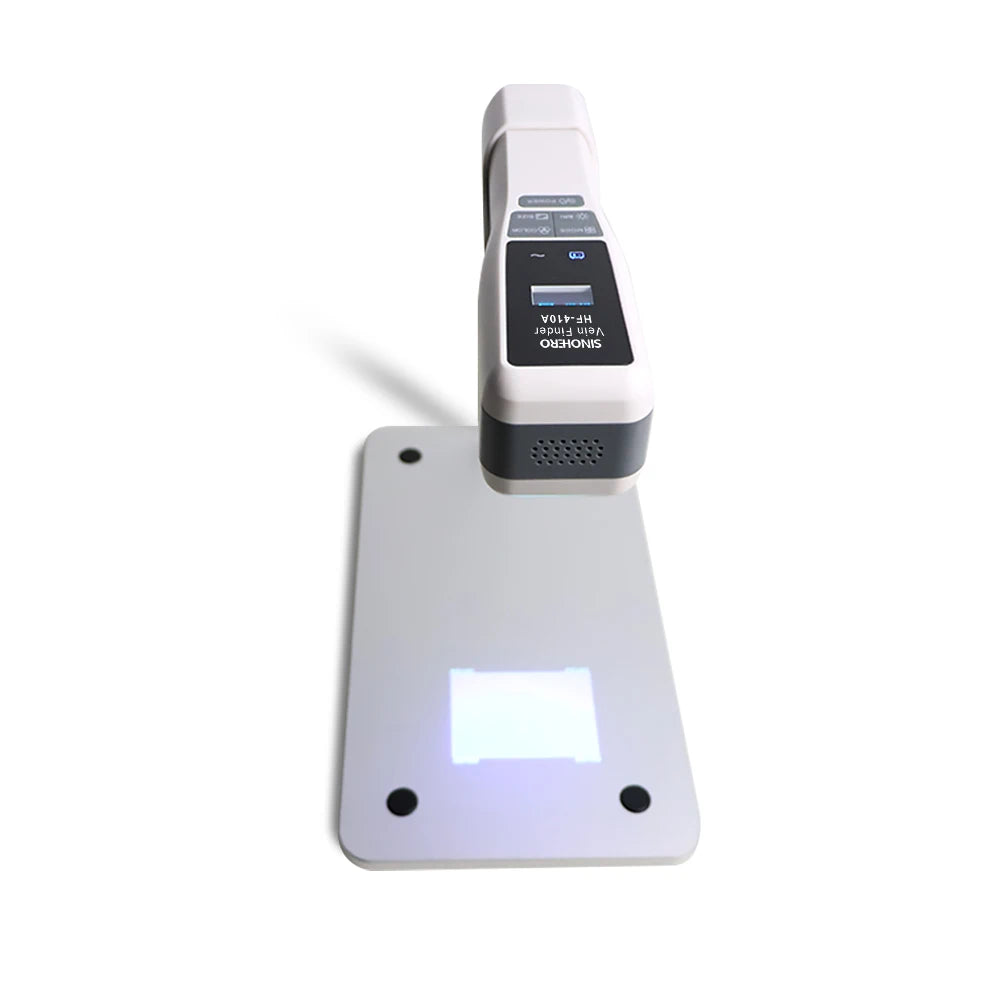

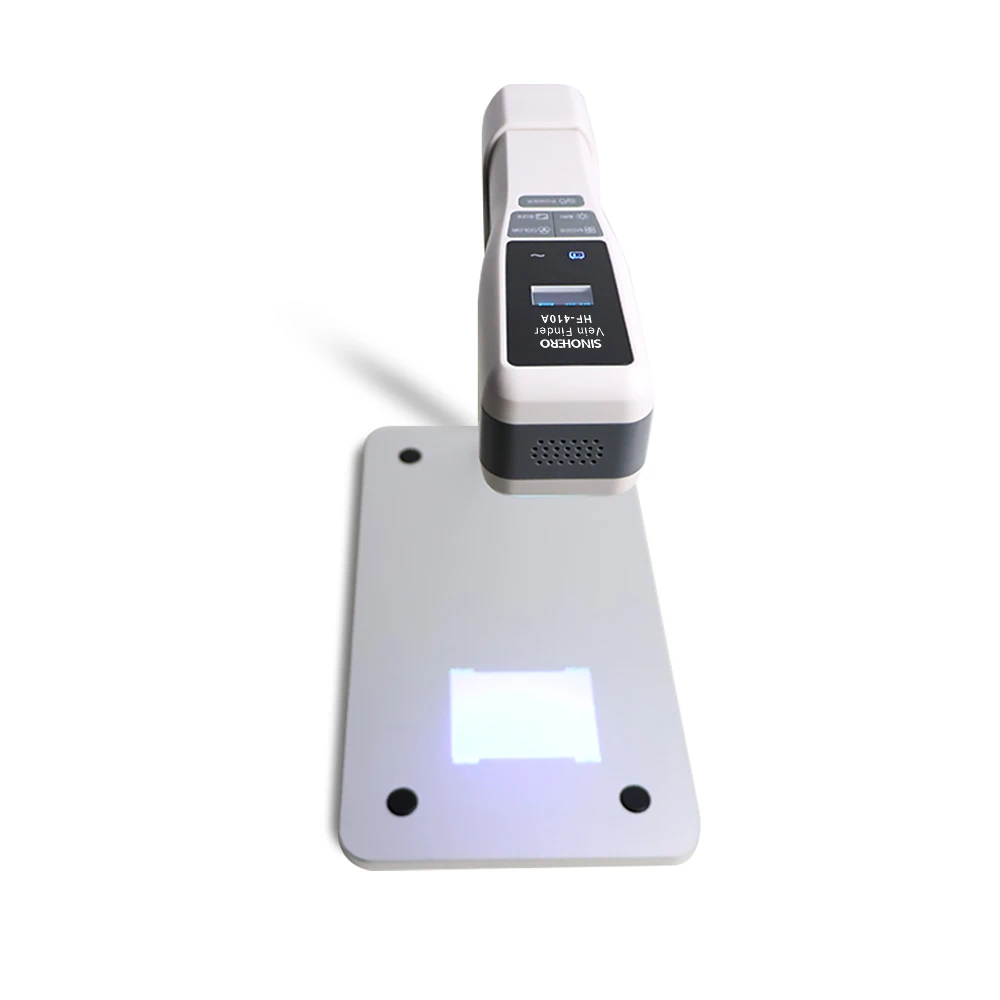

1X Benchtop Stand Holder

1X User's manual

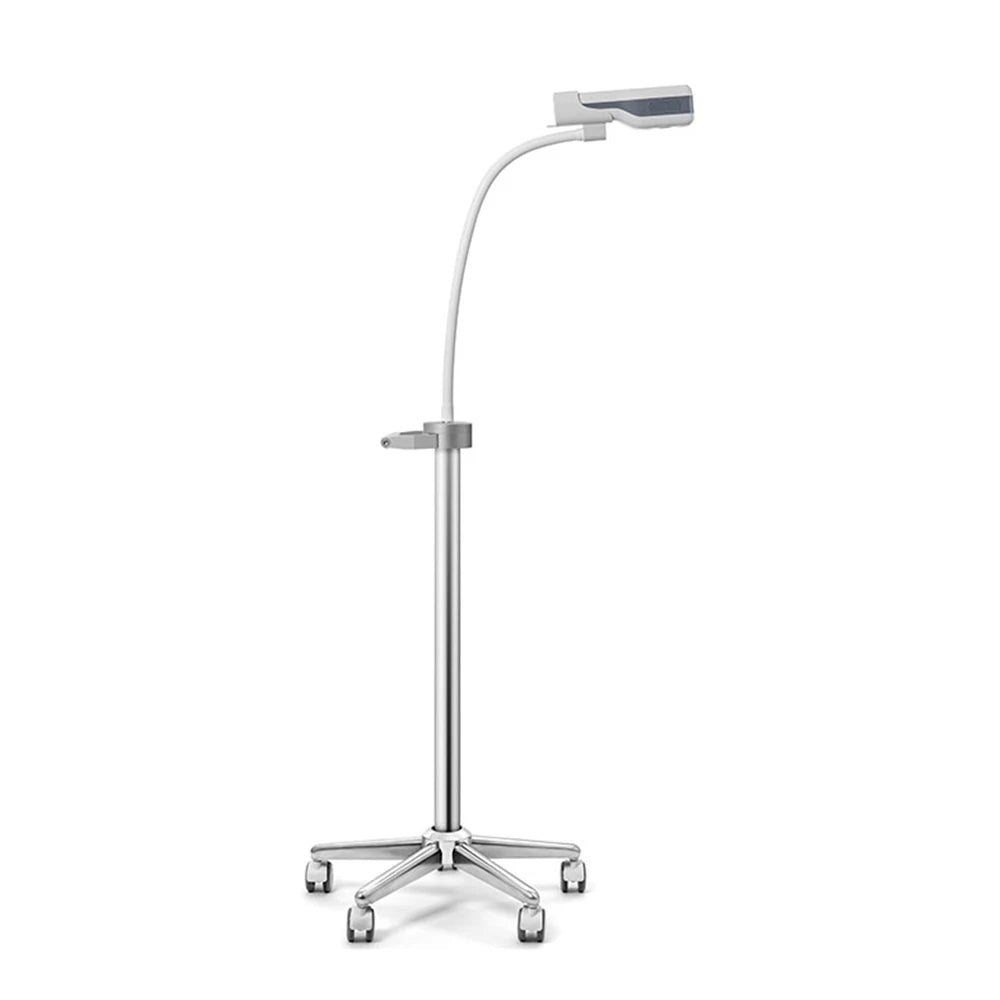

optional:Mobile Stand (if  you need it , pls feel free to contact us )
